Touch Screen Tablets Rotary Compression Machine With Force Feeding

Brand Name : TIAN HE

Model Number : ZP31

Certification : CE GMP ISO

Place of Origin : Shanghai, China

MOQ : 1 Set

Price : Negotiation

Supply Ability : 50 Set /Sets Per Year

Delivery Time : About 30-45 working days after payment

Packaging Details : Normal Export Wooden Case

Product name : high quality and best price Pills making machine

Material : Stainless Steel

Application : Tablet, Granules, Food, Medical, Chemical, Electronic

After-sales service provided : commissioning and training, Video technical support, Online Technical Support

Warranty : One Year

Condition : New

Production Capacity(pcs/h) : 64800-111600

Usage : pill tablet making

Contact Now

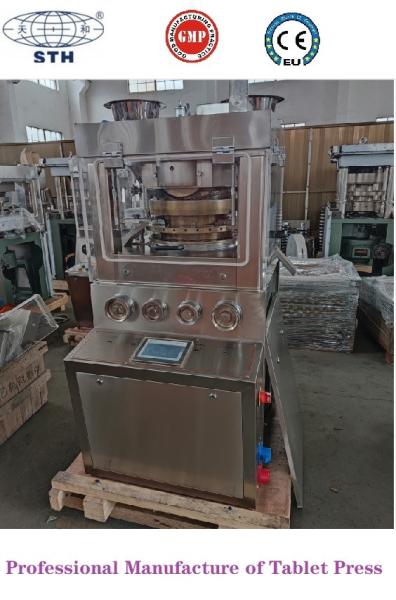

Touch Screen Control Big Size Tablets Automatic Rotary Compression Making Machine With Force Feeding Equipment

Rotary Tablet Press Machine


Application


This machine is a double-press type continuous automatic tablet press machine for pressing granular raw materials into tablets. It is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries and suitable for make large size tablets.


Feature


1. Double press type with high productivity, suitable for making big size tablets.

2. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.

3. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.

4. The machine can stop automatically in case of overpressure.

5. Speed adjustable, operation simple and reliable.


Main Technical Spesifications



ModelZP31ZP29ZP27
Number of Stations312927
Max Main Pressure (KN)100100100
Max Tablet Diameter (mm)252525
Max Filling Depth (mm)151515
Max Tablet Thickness (mm)666
Max Turret Speed (r/min)303030
Max Production Capacity (pcs/h)11160010440097200
Motor Power (kw)5.55.55.5
Overall Size (mm)1140×1000×1650
Machine Weight (kg)1850

Company information


Shanghai Tianhe Pharmaceutical Machinery Co.,ltd. (Brand STH) is founded by reorganizing the former Donghai Branch Factory of Shanghai No.1 Pharmaceutical Machinery Factory in 2000.The floor area of our factory covers 19,900 Square meters. Our registered trademark is "TH" and "STH".
STH was rewarded as a product-export type enterprise, which has the right of self import&export by ministry of Foreign Trade and Economic Cooperation of the People's Republic of China.
STH is specialized in the manufacture of pharmaceutical machinery and packaging equipment. All tasks from casting to metal machining and general assembly are accomplished by ourself. STH is a high-technology enterprise, which unites R&D new products and import&Export trade as one body.
We are not only the largest professional factory who is specialized in producing tablet press machines, but also the traditional manufacturer with a long history of over 30 years in producing pharmaceutical machinery and packaging equipment in China.
STH has obtained customers' trust and satisfaction depending on its fast development of new products, good quality, complete varieties, excellent service and economical price. Our products have serviced for over 3000 customers covered all the parts of China and been well exporting to over 60 countries and regions around the world. ” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.
We have formed the production capacity of supplying the complete equipment from raw material pulverizing, vibrating, wet mixing, granulating, drying, group mixing to tablet coating, filling, packing, cartoning, sealing, boxing etc. The applicative coverage of our machines is extending to ceramic, chemical, powder metallurgical and electronic industry.

OUR CUSTOMERS




Our products have covered all the parts of China and been well exporting to over 30 countries and regions around the world. We have taken the leading position in the industry due to our ability to supply complete sets of equipment and large volumes of annual sale. The trademark of 'Tianhe' is enjoying a good reputation in domestic and overseas markets, winning the favorable comments of the customers at home and abroad.


OUR PRODUCTS



” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.


OUR SERVICE



STH offers professional manufacturing and solution on Different Pharmaceutical Machinery and Packaging Materials.


1. Clients Inquiry and Consultation

2. Processing Solution Confirmation

3. Engineering and Manufacturing

4. Products Inspection

5. Shipment Arranging and Loading Job

6. Aftersales Service


PACKAGE



Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.


SHIPPING



Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.



FAQ


Q: Are you a factory or a trading company?
A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
