Rotary Pharmaceutical Automatic Tablet Press Machine High Speed

  • 1
  • 2

Brand Name : STH,TIANHE

Model Number : GZP(K)730

Certification : CE ISO GMP

Place of Origin : Shang Hai,China

MOQ : 1 Set

Price : Negotiation

Supply Ability : 1000 Sets per Year

Delivery Time : About 45-60 working days after payment

Packaging Details : Normal export wooden case

Material : stainless steel

Contact Now

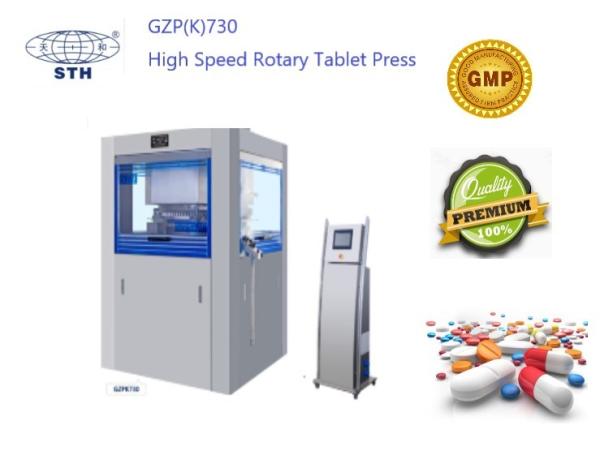

GZP(K)730 Series Automatic High Speed Rotary Tablet/pharmaceutiacal/food Press Machine


Application


The GZP(K)730 High Speed Rotary Tablet Press provides new design principle, which makes standardization, modularity and series design come true. .It compresses granular raw materials into various ordinary and shaped pieces, mainly used in tablet production in the pharmaceutical industry. It is also suitable for chemical, food, electronics, plastics, powder metallurgy and other industrial sectors.


Feature:

  1. -High speed with large quantity punches, double press rollers, suitable for mass production.

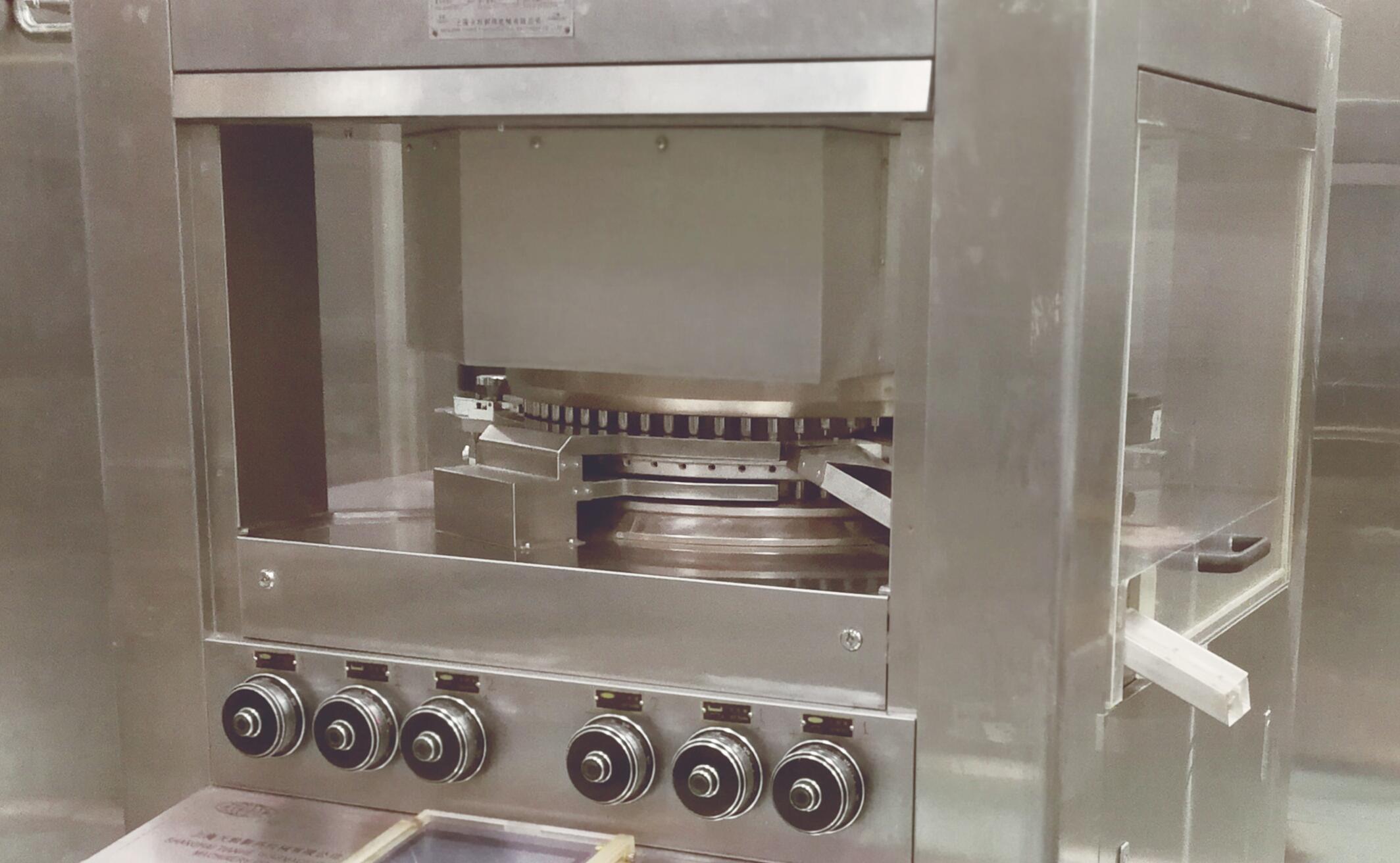

  2. -Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
  3. -Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
  4. -Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
  5. -Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
  6. -High performance electrical control system, ensure each program processing precisely.
  7. -Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
  8. -Special oil proof, dust proof and noise proof design.

Technical Parameter:

ModelGZPK-51GZPK-63GZPK-75GZPK-81
Number of Stations51637581
Tooling StandardDBBBBBS
Max Main Pressure (KN)100
Max Pre-pressure (KN)100
round tablet25181311
Max Tablet Diameter (mm)irregular tablet25191613
Max Filling Depth (mm)20181515
Max Tablet Thickness (mm)8766
Max Production Capacity (pcs/h)428400529200630000680000
Motor Power (kw)15
Overall Size (mm)1780×1660×1920
Machine Weight (kg)4800

Company information

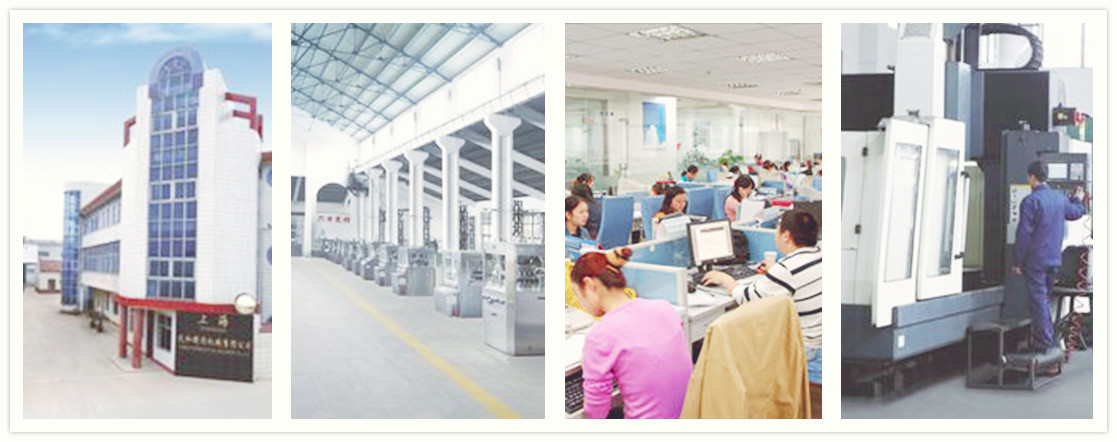

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.(STH) Established in 1992, located at the east end of Chongming Island, and the east side of the exit of Shanghai Yangtse Tunnel and Bridge under construction. We are specialized in the production of pharmaceutical machinery and packaging equipment.Covering a floor area of 19,900 square meters, and with the support of modern factory buildings of 9300 square meters, the net fixed assets of the company have reached USD550,000, and USD2,917,560 for the current assets.



OUR CUSTOMERS


Our products have covered all the parts of China and been well exporting to over 30 countries and regions around the world. We have taken the leading position in the industry due to our ability to supply complete sets of equipment and large volumes of annual sale. The trademark of 'Tianhe' is enjoying a good reputation in domestic and overseas markets, winning the favorable comments of the customers at home and abroad.



OUR PRODUCTS


” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' ect.


OUR SERVICE


STH offers professional manufacturing and solution on Different Pharmaceutical Machinery and Packaging Materials.


1. Clients Inquiry and Consultation

2. Processing Solution Confirmation

3. Engineering and Manufacturing

4. Products Inspection

5. Shipment Arranging and Loading Job

6. Aftersales Service


PACKAGE


Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.


SHIPPING


Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.


FAQ

Q: Are you a factory or a trading company?
A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years'experience,and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.

Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.


Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
