Big Pressure Camphor Ball Electronic Element Tablet Making Machine Double Layer Washing Block Compression Machine

Brand Name : TIAN HE

Model Number : ZP11/ZP18

Certification : CE ISO GMP

Place of Origin : Shanghai, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100Set/Sets per Year

Delivery Time : about 20 working days after payment

Packaging Details : Normal export wooden case

Product name : Rotary Tablet Press

Warranty : 1 Year

After-sales Service : Video technical support,Online support,Spare support

Marketing Type : Hot product

Material : Stainless steel

Key selling points : Big Pressure, Big Size

Applicable industries : Pharmaceutical,chemical, food, electronics, plastics, powder metallurgy

Max Main Pressure : 100KN

Contact Now

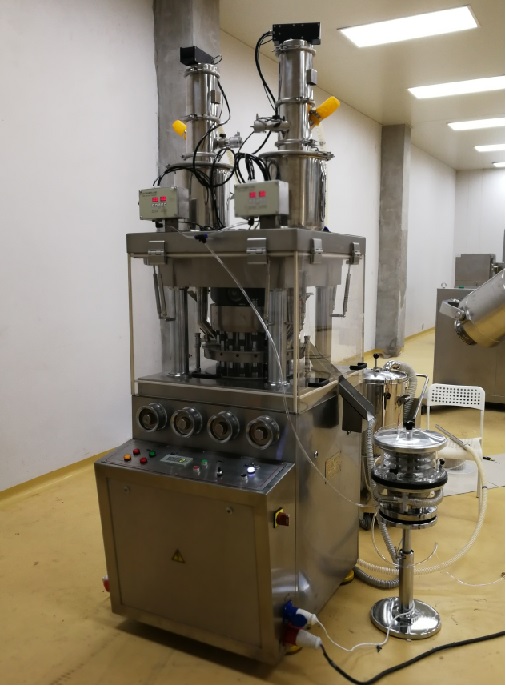

Big Pressure Camphor Ball Electronic Element Tablet Making Machine Double Layer Washing Block Compression Machine

Rotary Tablet Press Machine



Applications


ZP11/ZP18 Rotary Tablet Press is used in electronic industry, food industry, chemical industry, articles of everyday use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. Such as electronic element, camphor ball, catalyst and powder metallurgy.


Features

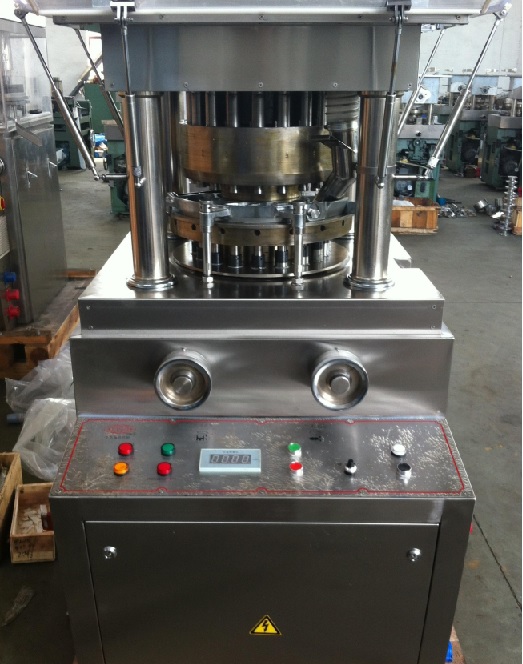

1.This machine is the single-pressing type equipped with 11 (18) sets of punch dies which are mounted on the workbench and reciprocate upward and downward along the curved guide rail to realize the actions needed for tablet pressing.

2.The operational flow of this machine is: material feeding, filling, tablet pressing, and tablet exporting, continuously.

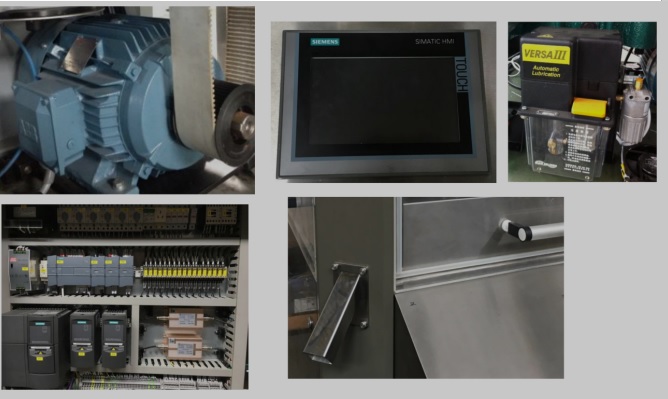

3.This machine is powered by motors. Through frequency-converting speed adjustment and triangular belt wheel, the work-gear case can be driven, causing the main axle and turret to move clockwise.

4.Rolling friction is adopted in the pressing wheel whose working pressure can be adjusted based on different needs. .Buffer device is also available to prevent the machine from being damaged due to mechanical impact and to elongate the machine’s service life.

5.Periphery of the machine’s working chamber is closed to meet the GMP requirements. Powder-absorbing orifice is installed on the bench surface to purify the working chamber.

6.Thickness of the pressed tablets, working pressure, filling amount, and rotational speed of the workbench are all adjustable. Detailed operations are directed on the operational panel to realize convenient adjustment and easy operation.

7.Material-feeding device is composed of hopper and moon-shaped grate material feeder. The hopper is mounted at top of the machine and can be dismounted. Large-amount single-variety production does not necessitate changing configurations of the machine’s parts. The materials can be directly inputted into the feeder by pipes from the machine’s top, making the operation very convenient.



Main Specifications


ModelZP11ZP18
Number of Stations1118
Max Main Pressure (KN)100
Max Tablet Diameter (mm)4530
Max Filling Depth (mm)4530
Max Tablet Thickness (mm)2012
Max Turret Speed (r/min)1220
Max Production Capacity (pcs/h)792021600
Motor Power (kw)5.5
Overall Size (mm)1100×1000×1900
Machine Weight (kg)2000


Company information




Shanghai Tianhe Pharmaceutical Machinery Co.,ltd. (Brand STH) is founded by reorganizing the former Donghai Branch Factory of Shanghai No.1 Pharmaceutical Machinery Factory in 2000.The floor area of our factory covers 19,900 Square meters. Our registered trademark is "TH" and "STH".
STH was rewarded as a product-export type enterprise, which has the right of self import&export by ministry of Foreign Trade and Economic Cooperation of the People's Republic of China.
STH is specialized in the manufacture of pharmaceutical machinery and packaging equipment. All tasks from casting to metal machining and general assembly are accomplished by ourself. STH is a high-technology enterprise, which unites R&D new products and import&Export trade as one body.
We are not only the largest professional factory who is specialized in producing tablet press machines, but also the traditional manufacturer with a long history of over 30 years in producing pharmaceutical machinery and packaging equipment in China.
STH has obtained customers' trust and satisfaction depending on its fast development of new products, good quality, complete varieties, excellent service and economical price. Our products have serviced for over 3000 customers covered all the parts of China and been well exporting to over 60 countries and regions around the world. ” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.
We have formed the production capacity of supplying the complete equipment from raw material pulverizing, vibrating, wet mixing, granulating, drying, group mixing to tablet coating, filling, packing, cartoning, sealing, boxing etc. The applicative coverage of our machines is extending to ceramic, chemical, powder metallurgical and electronic industry.

.

OUR CUSTOMERS



Our products have covered all the parts of China and been well exporting to over 30 countries and regions around the world. We have taken the leading position in the industry due to our ability to supply complete sets of equipment and large volumes of annual sale. The trademark of 'Tianhe' is enjoying a good reputation in domestic and overseas markets, winning the favorable comments of the customers at home and abroad.



OUR PRODUCTS



” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.

OUR SERVICE



STH offers professional manufacturing and solution on Different Pharmaceutical Machinery and Packaging Materials.


1. Clients Inquiry and Consultation

2. Processing Solution Confirmation

3. Engineering and Manufacturing

4. Products Inspection

5. Shipment Arranging and Loading Job

6. Aftersales Service

PACKAGE



Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.


SHIPPING



Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.


FAQ


Q: Are you a factory or a trading company?
A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your Satisfaction is Our Honor!
